How Power and Data Links Work in Tethered Drones

How Power and Data Links Work in Tethered Drones

Tethered drones, also known as Tethered Unmanned Aerial Systems (TeUAS), are a specialized class of Unmanned Aerial Systems. Unlike conventional drones that rely on batteries and wireless communication, tethered drones are physically connected to a ground station via a cable that supplies continuous power and transmits secure data. This configuration enables persistent flight, enhanced payload capacity, and reliable communications.

Benefits of Tethered Drone Systems

1. Unlimited Flight Time — powered directly from the ground, TeUAS can remain airborne for hours or even days, eliminating battery limitations.
2. Secure Data Transmission — fiber-optic lines in the tether ensure encrypted, interference-free communication, and immunity from electromagnetic attacks.

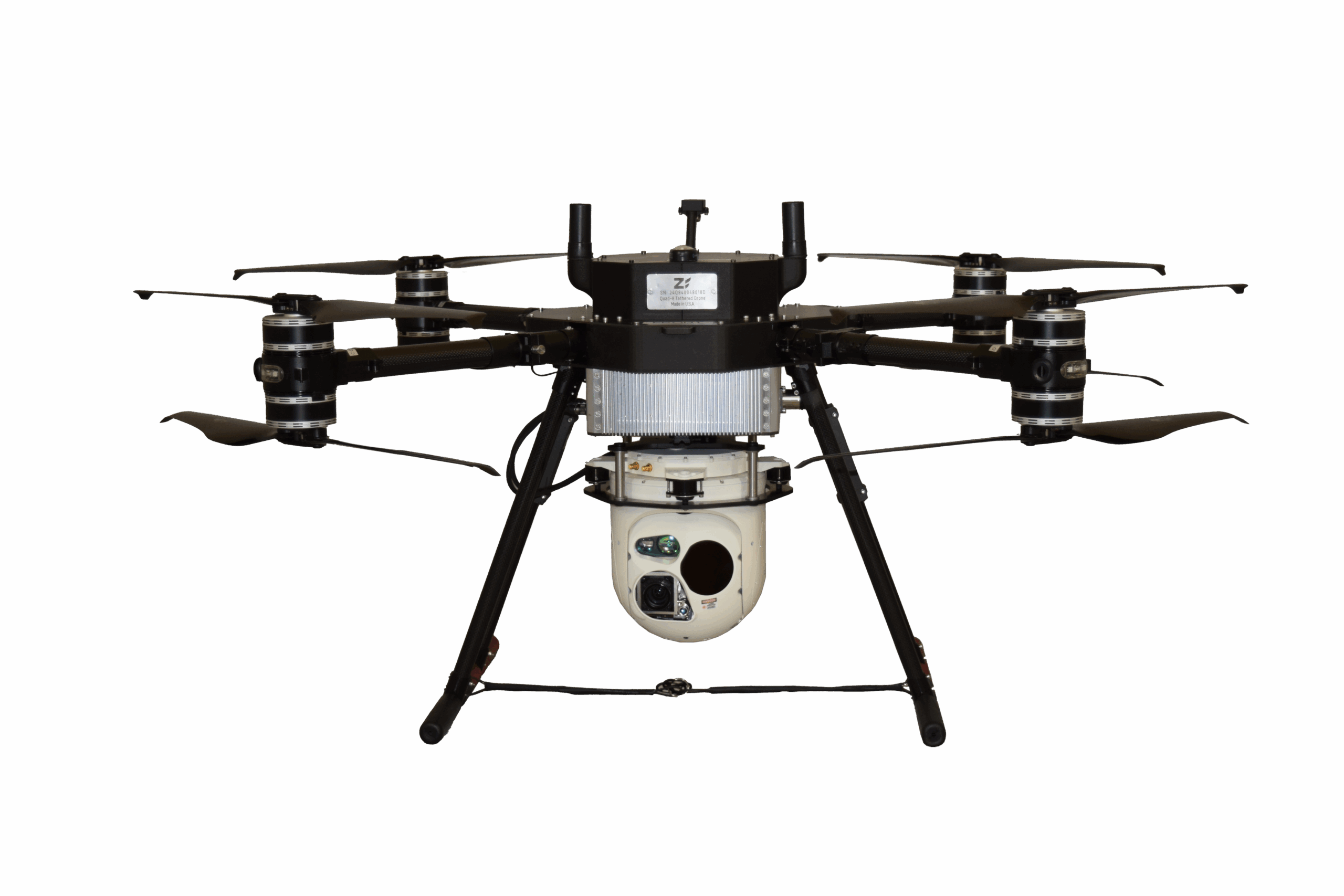

3. Heavy Payload Capacity — the Quad-8’s design uses powerful motors and large propellers, outfitted with a 913 Picatinny rail for simple payload mounting.
4. Simplified Operation — Zenith QGC ground control software enables one-button takeoff and landing, reducing operator workload.
5. Fail-Safe Features — the Quad-L and Quad-8 have backup batteries in two separate areas to keep power flowing to the drone and Ground Power Unit, plus an automated landing protocol for power or communication failures.

How Tethered Drones Increase ISR Capabilities

1. Persistent Overwatch — continuous flight allows uninterrupted monitoring of border protection, event security, and military operations.
2. High-Altitude Surveillance — the Quad-8 can hover at altitudes up to 400 feet, extending line-of-sight coverage across miles.

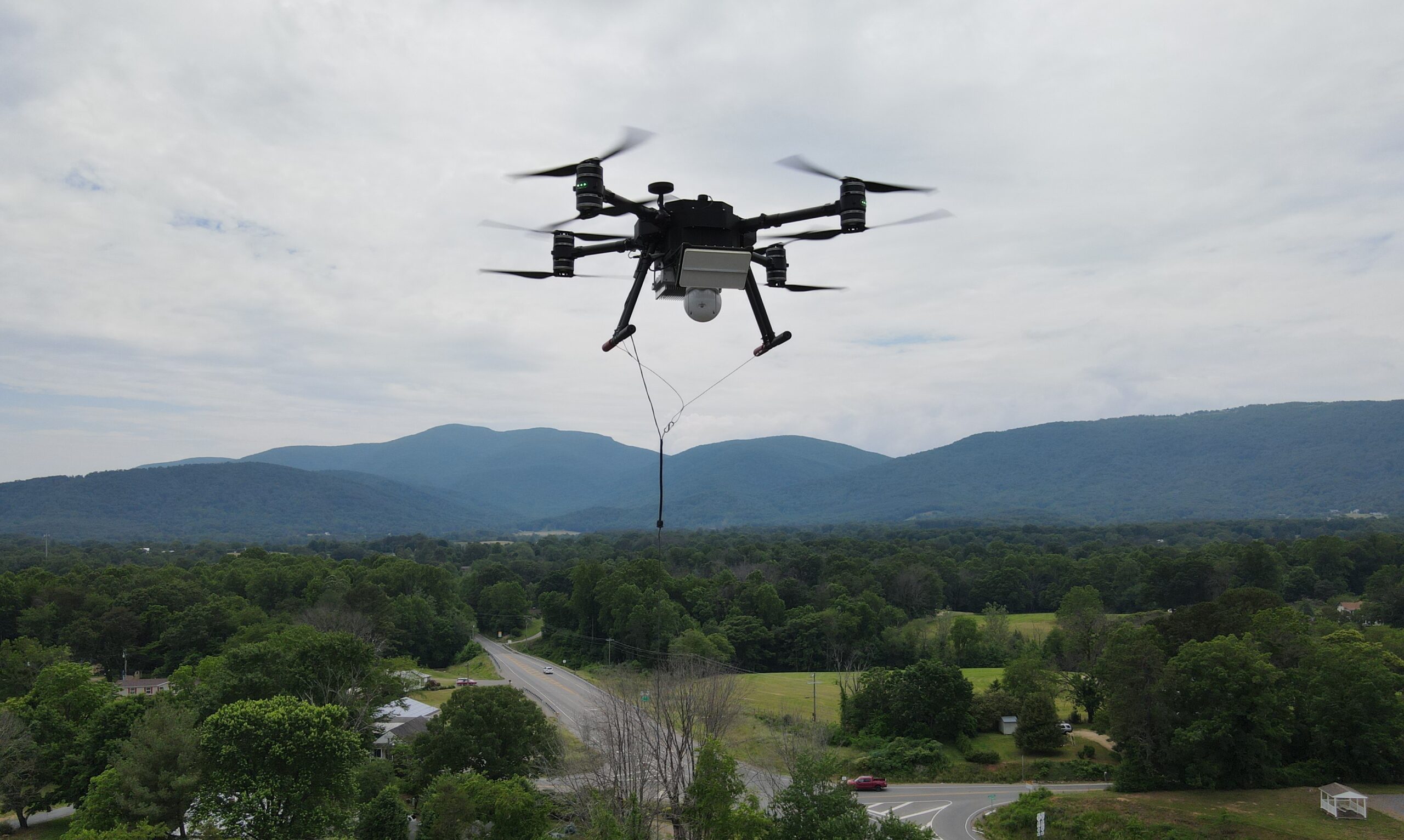

3. Multi-Sensor Payloads — integration of EO/IR cameras, radar, and communication relays enhances situational awareness.
4. Real-Time Data Streaming — fiber-optic tethering supports high-bandwidth transmission of live video and telemetry.
5. Low Signature Operations — no RF emissions from the drone reduce detectability and vulnerability to electronic warfare.

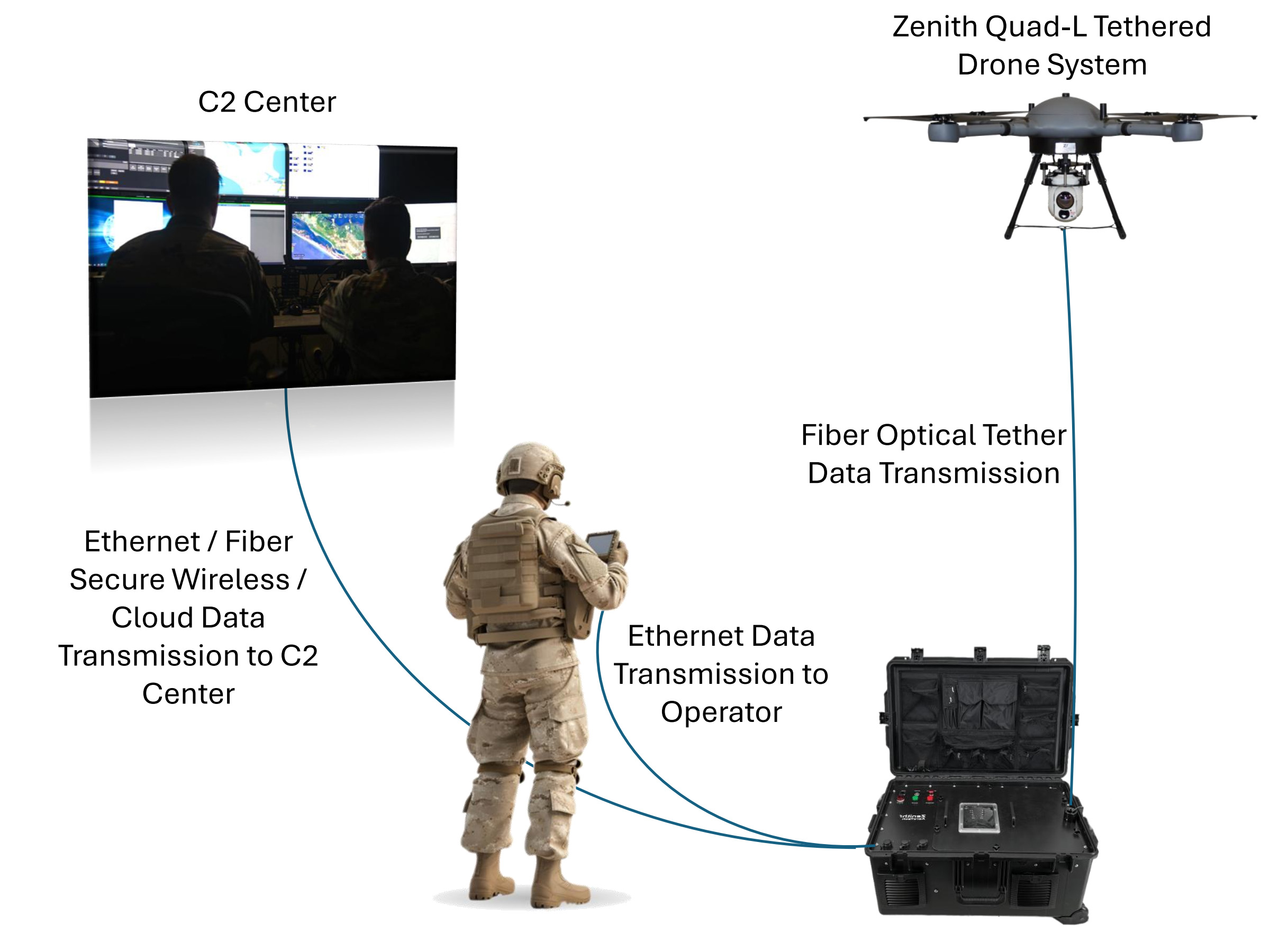

Secure Data Transmission Architecture

Zenith Aerotech’s tethered drone system captures live video and transmits it to the Ground Power Unit (GPU) via a fiber-optic tether — immune to jamming and interception, and resistant to electromagnetic interference. Once at the GPU, video becomes accessible to the field operator through an RJ45 Ethernet connection, and from there can be sent to a Command and Control (C2) center via RJ45 Ethernet, fiber-optic link, secure wireless communication, or secure cloud-based transmission.

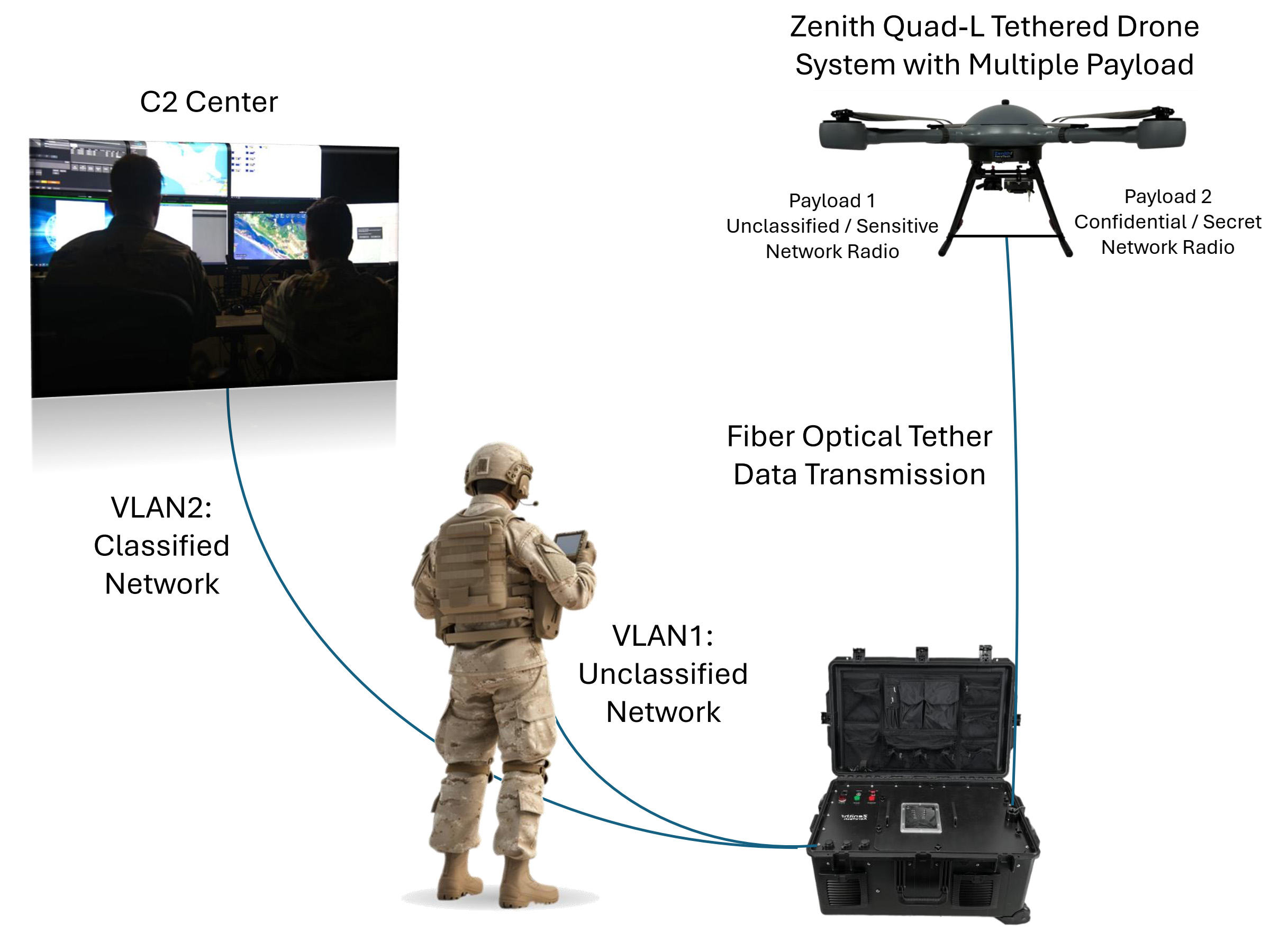

Dual-Network Secure Communication System

Zenith Aerotech’s tethered drone system is equipped with two distinct payload radios: a classified-network radio for secure, mission-critical communications, and an unclassified-network radio for general operational data and field coordination. Both the drone and the GPU use managed network switches to keep classified and unclassified data isolated, with unclassified data available at the GPU over RJ45 Ethernet and classified data securely routed to a C2 center by Ethernet, fiber, secure wireless, or secure cloud transmission.

The Role of TeUAS in Operations

• Communications Relay — TeUAS can serve as variable height antennas, extending radio and network coverage.
• Force Protection — elevated platforms provide early warning for military, law enforcement, and fire rescue units.
• Disaster Response — rapid deployment and persistent monitoring in emergency scenarios.
• Event Security — continuous aerial surveillance supports crowd management and threat detection.
• Industrial Monitoring — inspecting infrastructure, monitoring environmental conditions, and supporting construction sites.

Why Choose Zenith Aerotech’s TeUAS Solutions?

Zenith Aerotech, based in Afton, Virginia, is a premier U.S. manufacturer of TeUAS platforms known for reliability, endurance, and customization: proven endurance (108 continuous hours of flight on the Quad-8), heavy-lift capability (payloads up to 24 lbs., including radar, EO/IR cameras, and networking radios), secure fiber-optic data links with no RF emissions, simplified one-button control via Zenith QGC, and customizable, modular platforms. Zenith’s systems are NDAA-compliant and built entirely in the U.S.

Conclusion

Tethered drone systems are redefining aerial operations by offering persistent flight, secure data transmission, and versatile payload support. Whether for ISR, communications, or emergency response, TeUAS platforms deliver unmatched capabilities — and Zenith Aerotech’s commitment to innovation and reliability makes us a leading provider of advanced TeUAS systems.

Learn More

If you have questions about how Zenith Aerotech can support your mission with tethered drone solutions, please reach out to our team. We’re ready to help you elevate your operational advantage.
